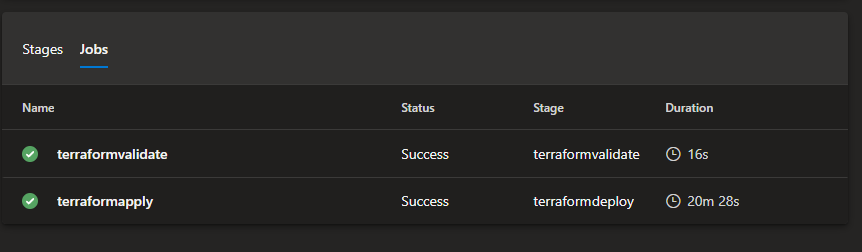

CI/CD Azure Web app deployed via Terraform

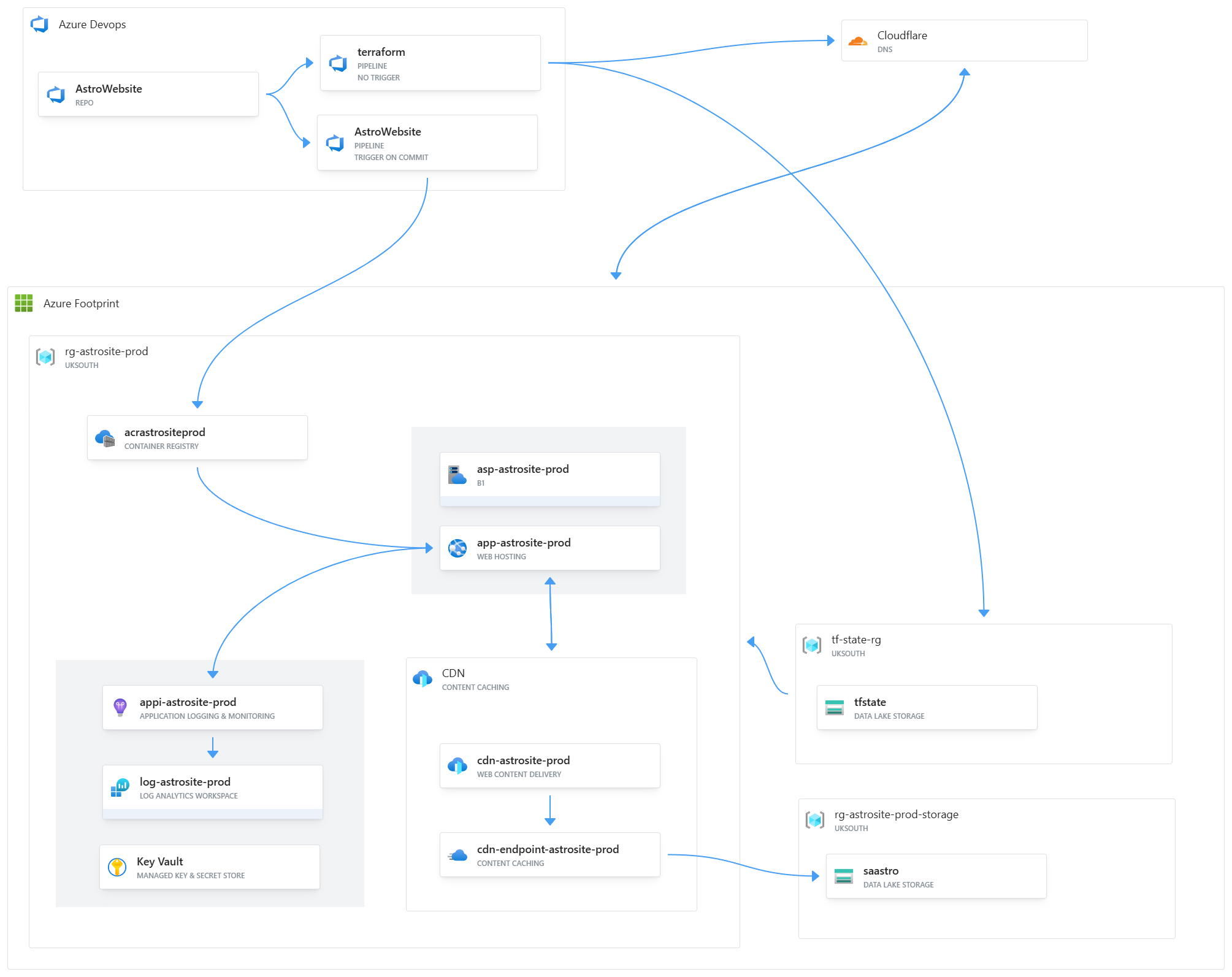

Created using azurediagrams.com

• resourceGroup

Creates an RG based off the project_name & environment variables passed through
After creation the RG name is outputted

• appInsights

Creates a LAW and links an Application Insights resource to it

APPINSIGHTS_INSTRUMENTATIONKEY & APPLICATIONINSIGHTS_CONNECTION_STRING are outputted to be used to bind a web app to the App Insights resource
The ID of the App Insight is also outputted

• key_vault

Creates a key vault to store secrets needed for the devops pipeline
The Key Vault ID is outputted

• containerRegistry

Creates a Container Registry to hold the Docker containers created as part of the Web App CI/CD pipeline
Also assigns the managed identity of the ASP created later the AcrPull role so it can pull the latest Docker image

• linuxAppService

Creates an App Service Plan with the B1 SKU
A Linux Web App is also created under the ASP and also passes through the outputted Application Insight variables, as well as the Container Registry information

The following variables are outputted:

• app_service_plan.id

• web_app_name

• app_service_plan_managed_id
  Passed through to be used by the containerRegistry module to assign the Managed Identity the AcrPull role

• web_app_domain_verification_id
  Used by the cloudflare module to verify the custom domain used

• web_app_default_domain
  Also used by the cloudflare module to verify the custom domain

• storageAccount

Creates a new RG to hold a storage account under - the storage account will later be used by the CDN module to configure it as an origin

• cdn

Creates a CDN profile and a CDN endpoint, the storage account created by the storageAccount module is linked as a origin so images stored in the storage account can both be cached by the CDN to reduce costs, allow images to have a custom domain instead of the default blob endpoint and be encrypted over HTTPS

The endpoint FQDN is outputted to be later used by the cloudflare module to verify the second custom domain

• cloudflare

Using the Cloudflare Terraform provider 3 DNS records are created

• cdn_cname
  Creates a CNAME record using the cdn_hostname and cdn_endpoint_uri, this is used to verify the custom domain linked to the CDN, in my case this will be images.andriusdalgeda.uk

• web_app_txt
  Creates a TXT record using the web_app_domain_verification_id & asuid. plus the website_hostname
  This is used to verify my andriusdalgeda.uk custom domain linked to the web app

• web_app_a
  Creates an A record using the website_hostname and the IP address returned by the DNS Terraform provider
  This is needed as Azure doesn’t return the IP address linked to the web_app directly so the provider is called to resolve the record to an IP address
  The IP is then passed through to create the A record

After creation of these 3 records a 2min sleep is started to ensure that the DNS changes propagate so that the next modules won’t fail

• hostname_binding

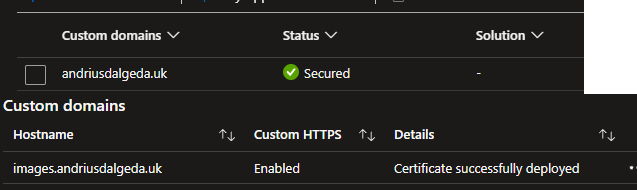

After adding the DNS records the module links the custom domain to the web app (andriusdalgeda.uk)
An Azure managed certificate is also generated to encrypt traffic over HTTPS to the site

• cdnCustomDomain

After DNS verification a custom domain is passed through to the CDN (images.andriusdalgeda.uk)
This starts domain verification which can take up to 8 hours so the deployment time can vary

• hashicorp/azurerm

• cloudflare/cloudflare
  Creates DNS records needed to verify the custom domains of both the web app & CDN

• hashicorp/time
  Used for a time-sleep statement in the cloudflare module

• hashicorp/dns
  Used to resolve the web apps address to an IP, the IP is then passed through and used for domain verification using an A record
